E+PLC400 modular PLC
E+PLC400 is a PID controller, recorder and PLC combined in a single, modular solution which is incredibly easy to engineer. Using an open industry standard (IEC 61131-3) platform and a single, integrated programming and visualisation environment, this innovative instrument is designed to offer flexibility to match process requirements while reducing engineering time. It is feature rich and gives an enhanced user experience which delivers operational efficiency, better process performance and easier regulatory compliance.
All the pieces of your process puzzle with added versatility and scalability

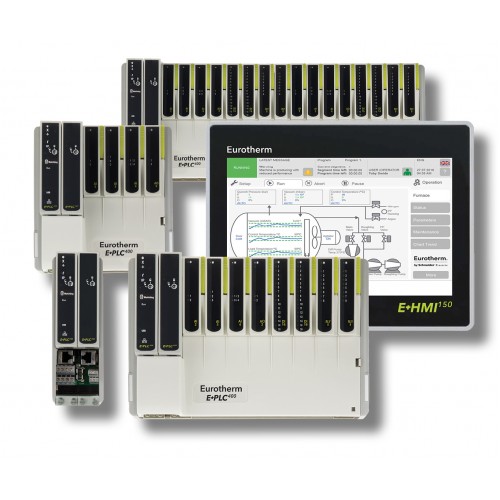

E+PLC400 combines full PLC functionality with unique Eurotherm control and recording capability made available in rapidly engineered function blocks. It is available in a choice of base sizes, is scalable to suit current and future process needs, and comes with a versatile range of precision I/O modules.
E+PLC400 uses CODESYS, a leading open platform, to provide a familiar programming environment with a range of IEC 61131-3 languages available to ensure ease of use. Easy, flexible visualisation is provided by the connection of up to two local operator panels as well as the ability to view the process via a web server on mobile devices such as PCs, tablets and smartphones; all quickly configured with automatic tag recognition within the same programming environment as the PLC.
To control accurately, you need to measure precisely. The modular form of the E+PLC400 enables the incorporation of a versatile selection of precision I/O modules which enable accurate control and recording. Analogue and digital I/O, relay outputs and zirconia input are all available for inclusion in a selection of base sizes to exactly match application needs. Its high performance I/O gives accurate measurements, enabling tighter control and an exact historical record of a process.
A versatile solution for small to medium-sized applications
Best in control
E+PLC400 incorporates over 50 years of control knowledge including the unique Eurotherm autotuning PID algorithms that provide a superior control performance.
- Reduce process times by getting to the setpoint quickly
- Optimise energy usage by eliminating overshoot or undershoot while still providing rapid control response
- Improve quality by giving stable control performance with tighter tolerances
- Provided in pre-engineered function block form that you simply need to parameterise
Cost effective, superior control performance – why compromise?
Easy setpoint programming
Feature rich, the E+PLC400 includes highly flexible, easy to use setpoint programming. Using a spreadsheet style format, multiple programs with numerous segments can be quickly configured ensuring easy setup and improved operational efficiency.
Guaranteed operation which can lower processing costs
Best in recording
E+PLC400 has integrated recording capability with highly efficient batch data management strategies to ensure total data integrity and security. It provides complete peace of mind by using decades of recording expertise to ensure compliance with both regulatory and quality standards through:
- Continual secure recording at point of measurement
- Incorporating power and network fail strategies ensure to complete data integrity
- Complete record/batch traceability with all process and metadata securely stored together
- Efficient archiving and data management using local USB, FTP servers and the innovative Eurotherm Online Services tool, EOS Director
- Archiving strategies providing self-healing, fully validated records
- Secure recording and batch data management provided in easily parameterised, function block form
Efficient data management of totally secure process records
The E+PLC400 uses the leading CODESYS platform to provide a familiar programming environment and reduce engineering costs. Complete solutions are built in this single, integrated environment. It incorporates advanced Eurotherm PID control and recording capability in the form of easy to use function blocks along with the integrated design of visualisation elements. E+PLC400 offers you a complete, high performance PLC solution for your process, designed for rapid engineering and versatile application.
Programming tools which will reduce your engineering time include:
- Rich functionality in easy to use function blocks
- Auto-tuning PID control
- Secure recording
- Batch data management
- Setpoint programmer
- Zirconia probe input
- Comprehensive inbuilt PLC function block libraries
- A single, integrated programming environment to engineer a complete, scalable process solution, including PLC, PID control, recording and visualisation
Creating a complete, high performance scalable PLC solution has never been easier

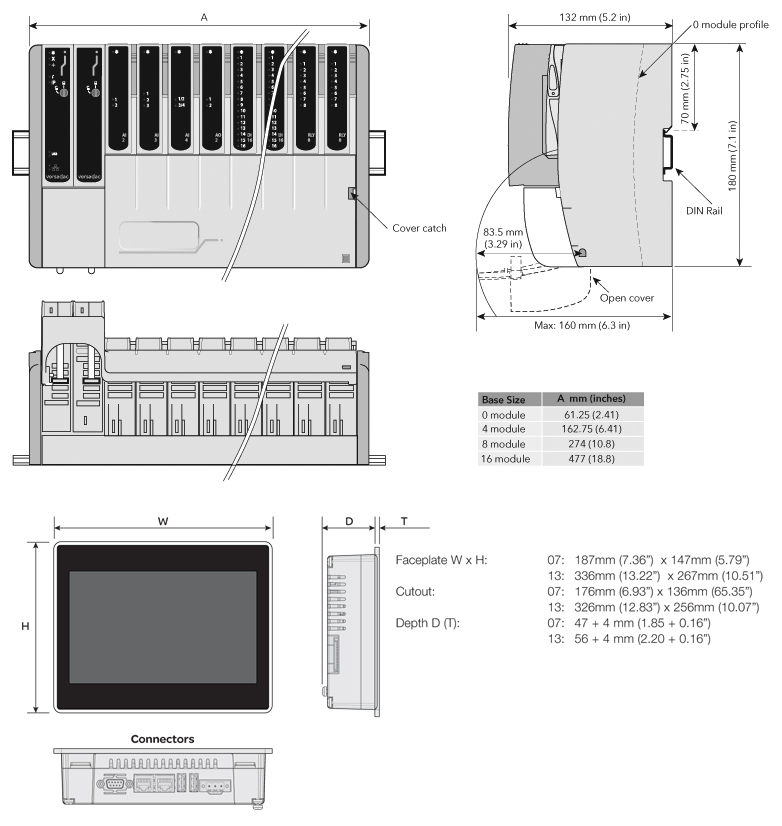

|Dimensioni e foratura||
FTP, Modbus, TCP/IP (Master/Slave) Modbus Serial RTU (Master/ Slave), EtherCAT*, OPC-DA via PC based software (*Contact factory for availability)
|I/O Expansion Method||
|Panel HMI (Protocol)||
Modules: A18*, AO2, D16, DI16, DO16, RLY8, ZI
|Recording Duration (approx)||
Based on 4 chs at intervals of: 1s 50.5 days 10s 1.28 years 20s 2.77 years 60s 8.3 years
|Suitable for AMS2750E Process||
